GEODESIC LED DOME

THE CHALLENGE

A geodesic dome at 44 feet across is not a small object in a room. It is the room. The structure, built by Dome Masters to 5V geodesic specifications, provides the architectural framework. ESP's scope was the LED environment that makes the structure come alive: pixel-mapped LED bars installed on every structural edge of the dome except the bottom row, mapped as a unified system and controlled through MADRIX.

The project started as a production installation at Decadence Colorado, where the dome functioned as an immersive environment within the festival footprint. It now lives at Bounce Empire as a permanent architectural feature of the venue, housing an inflatable attraction inside. The LED environment wraps the exterior of the structure, turning the dome into a landmark within the space that draws people in before they ever step inside it.

WHAT WE BUILT

PIXEL-MAPPED LED BARS ON ALL STRUCTURAL EDGES

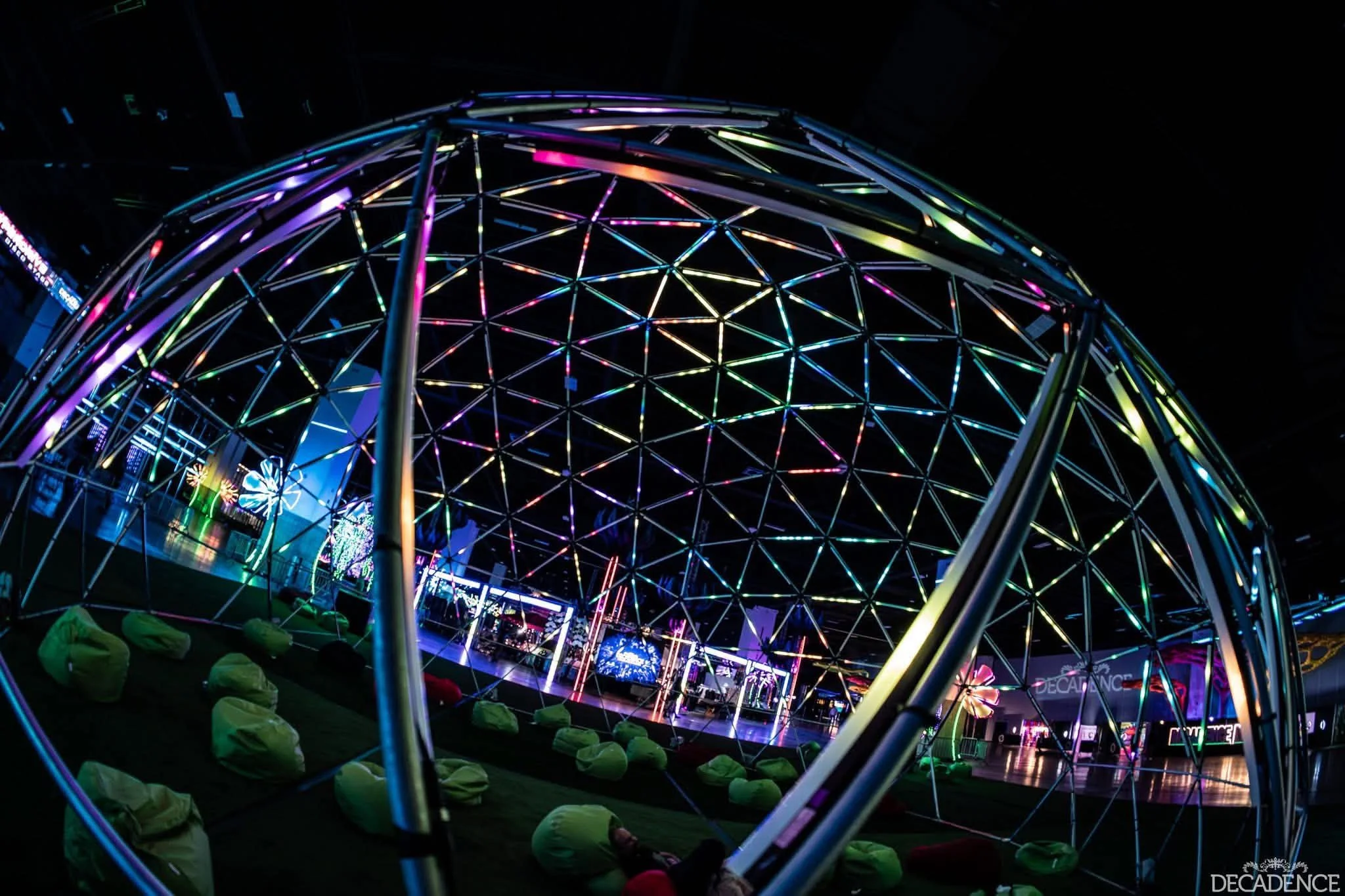

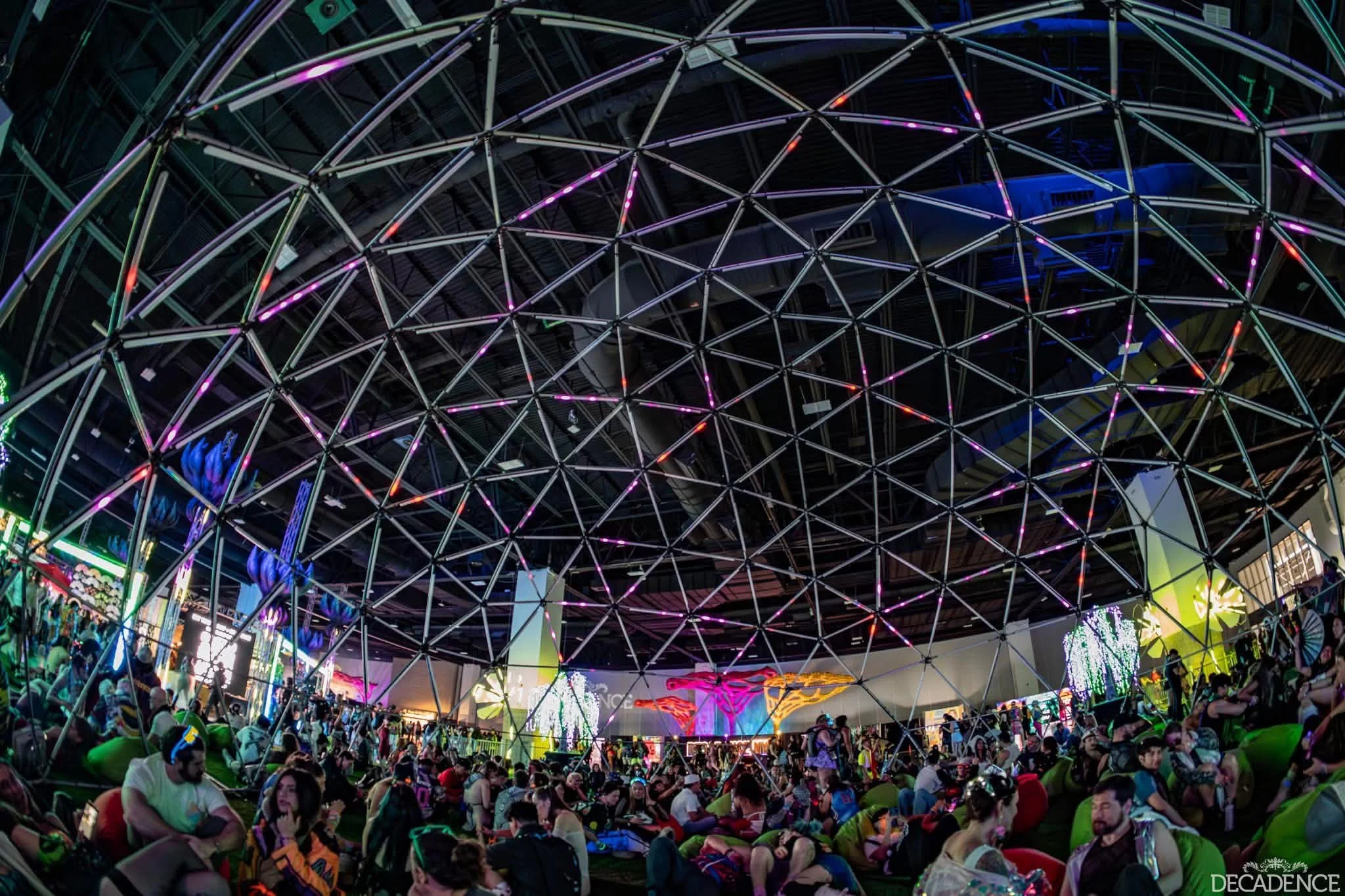

Every structural edge of the 5V geodesic dome carries a pixel-mapped LED bar, except the bottom row. At 44 feet, a 5V geodesic has a lot of triangular faces and a lot of edges. Covering all of them means the full geometric pattern of the dome is drawn in light. Standing outside the dome you see a three-dimensional LED object. Standing inside you are underneath a continuous field of individually addressable light that follows the geometry of the structure directly above you.

The bottom row is left bare on purpose. LED bars at ground level create clutter at the entry points and along the floor perimeter. Leaving them off keeps the base clean, pushes the visual focus upward where it belongs, and simplifies power and data routing at ground level where people are walking.

MADRIX MAPPING AND PROGRAMMING

The full installation is mapped and controlled through MADRIX. At dome scale, pixel mapping is not a simple task. The geometry of a geodesic dome means every edge exists at a specific angle and position in three-dimensional space. MADRIX maps the full three-dimensional geometry so that effects travel across the dome surface in spatially accurate ways: a color wave that moves from the apex downward follows the actual geometry of the structure rather than a flat grid approximation.

The programming range is wide. Slow ambient color washes that make the dome feel like a living object in the room. Fast audio-reactive patterns that follow the music in real time. Static geometric patterns that highlight the icosahedral symmetry of the 5V structure. The MADRIX system handles all of it from one platform.

GROUND-SUPPORTED STRUCTURE

The Dome Masters structure is ground-supported, which means no rigging infrastructure, no venue structural engineering review for hanging loads, and no dependence on what is above the dome. For a production deployment at Decadence, that portability is essential. For a permanent installation at Bounce Empire, the ground-supported footprint means the dome can be positioned and repositioned within the venue without modifying the building's structure.

Power and data distribution across the dome runs from ground level up through the structure to each edge section. The routing was designed for the dual-use life of this installation: clean enough for a permanent venue feature, practical enough to be assembled and struck for a production deployment.

EXECUTION

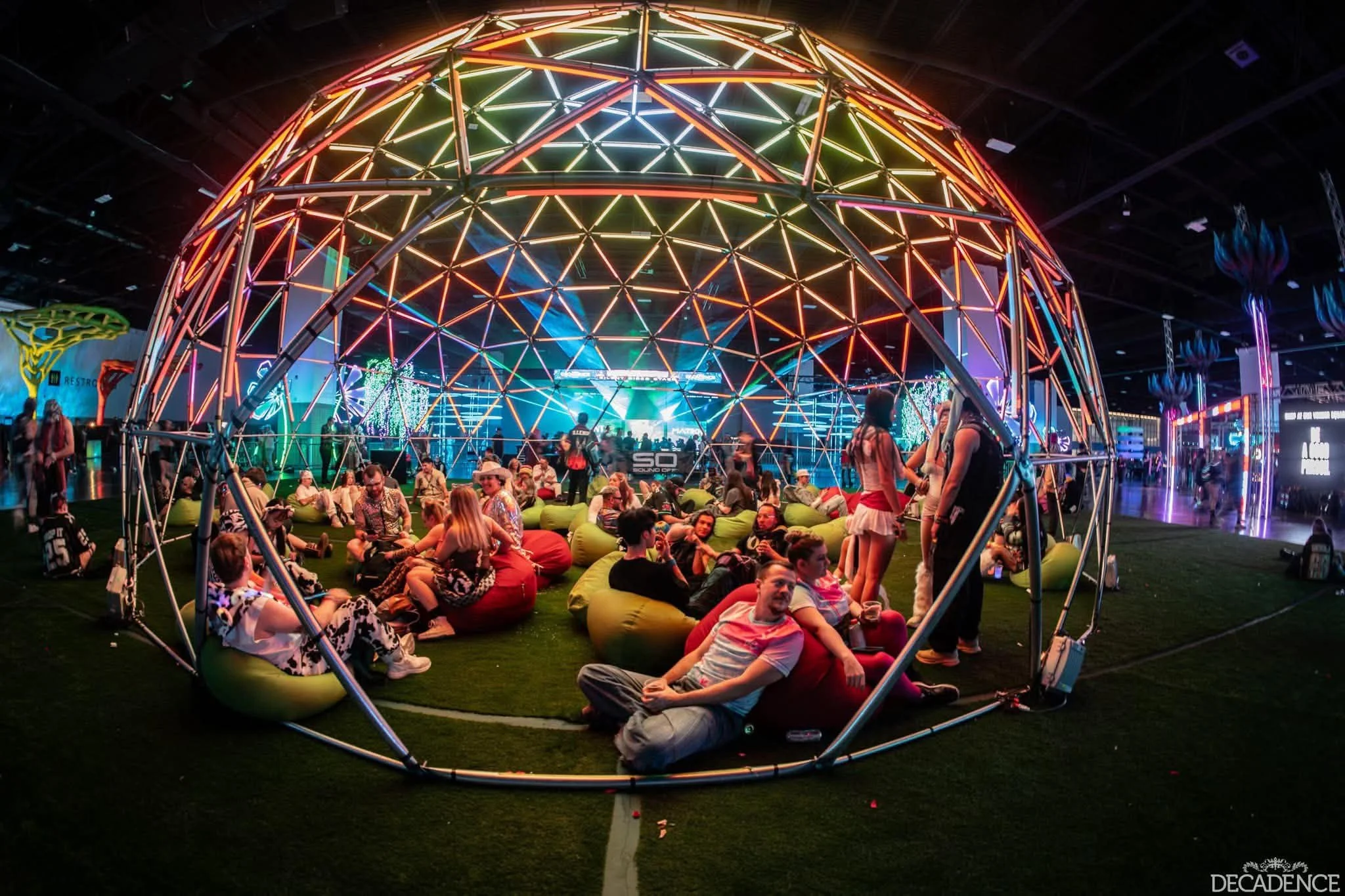

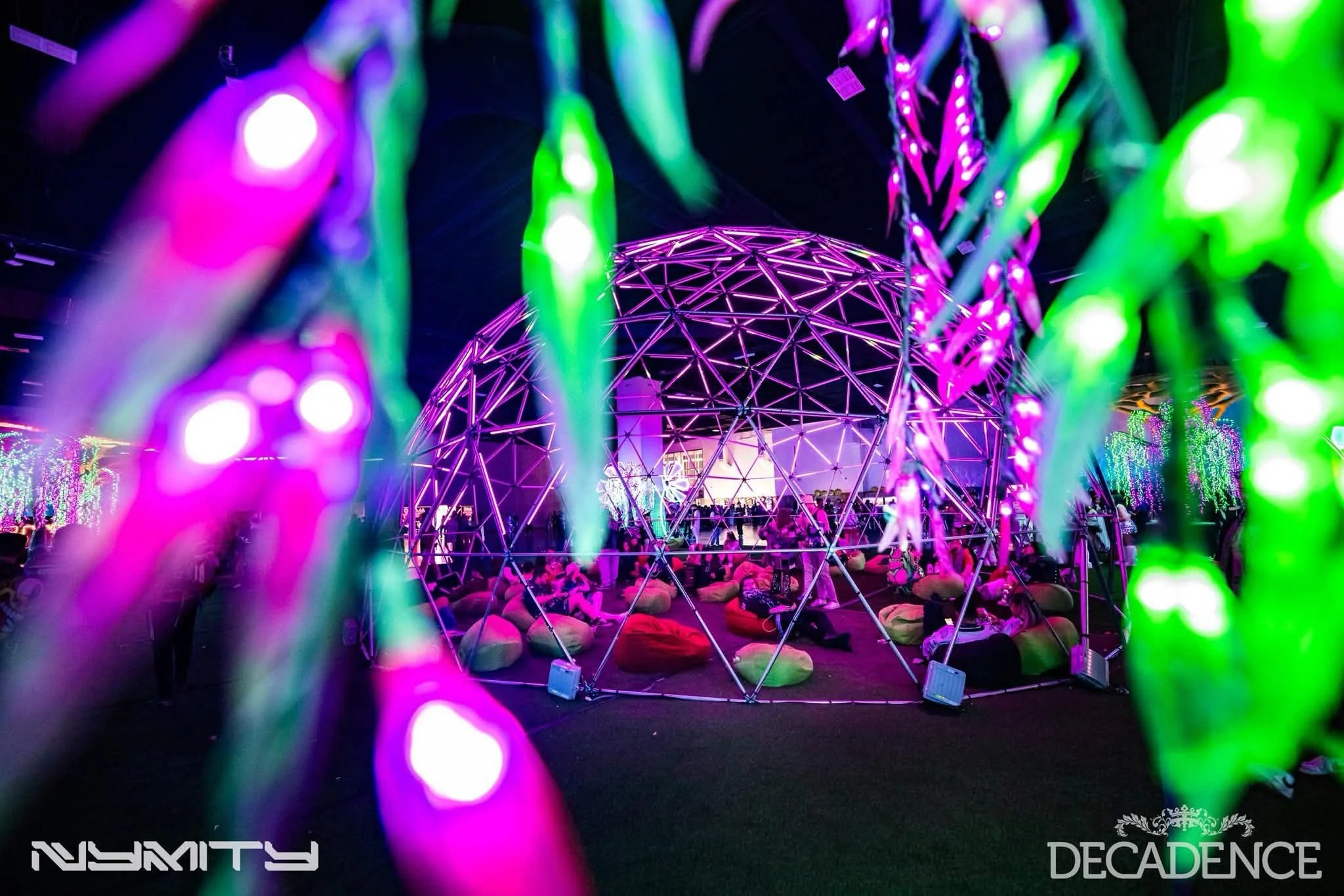

The dome was first deployed at Decadence Colorado, where it functioned as a destination environment within the festival. A 44-foot geodesic dome with a fully pixel-mapped LED edge system draws people in. Inside the dome the effect is immersive in a way that an open festival floor environment cannot replicate. The structure creates its own contained world.

After Decadence, permanent installation at Bounce Empire was the natural next step. The same dome that functioned as a production environment at one of Colorado's largest New Year's Eve festivals is now a permanent architectural feature of the venue. The MADRIX programming was adapted for the permanent context: scenes designed for daily venue operation, event programming, and special use cases specific to Bounce Empire's format.

This is what the best art installations do. They prove themselves in a high-pressure production context and earn their place as permanent environments.

THE RESULT

A 44-foot geodesic dome with pixel-mapped LED bars on every structural edge except the bottom row, mapped in three dimensions through MADRIX, operating first as a production installation at Decadence Colorado and now as a permanent feature of Bounce Empire. The structure is the same. The context changed. The system performs in both.

44FT 5V GEODESIC DOME

ALL EDGES  PIXEL-MAPPED LED BARS EXCEPT BOTTOM ROW

2  DEPLOYMENTS: DECADENCE COLORADO AND BOUNCE EMPIRE PERMANENT
